iGS-220 Day & Night Temp, Relative Humidity
& Co2 Control
Features:
Sophisticated
controller for experienced growers
Output 1
(left) for CO2 enrichment or CO2 ventilation control
Output 2
(right) for temperature or humidity control
Displays CO2,
temperature and relative humidity values
Precise CO2
electronic sensor: truly ±75 ppm
Yearly easy
calibration by the user when prompted on display
Precise
temperature electronic sensor: ±1.8°F (±1°C)
Precise
relative humidity electronic sensor: ±3.5% RH
Day/night
detection
Adjustable
different set points for day and night
Adjustable
operation priority and additional shut-off delay
Smart
automatic self adjustment of operation differential to keep conditions closest
to set points
Can shut off
another equipment while CO2 enrichment is ON, or the other way around
Operating
hints: Allow you to check up your parameters set-up performance
24 hr data
base of sensor values
Alarm system
hook-up (with PLUG'n'GROW iMS-100) for excessive temperature or relative
humidity
120 V, 15 A, 2 HP total load capacity
Useful Tips:

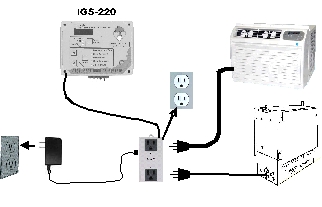

In any
computer supplies store, get a computer network cable (RJ-45) of the length
needed (up to 50 feet - 16 meters), to install the iGS-220 controller at the
appropriate location, and position the iGS-25 power box nearby the equipments.
Plug the CO2
generator power cord to the iGS-25's outlet 1, and an air conditioner or
dehumidifier or heater to the other outlet;
Or double
your cooling/heating or humidifying/dehumidifying capacity by plugging the
sense cord from a switcher relay iLS120-ON in the iGS-25 outlet 2 to add other
equipments up to 15 A, 120 V;
Or multiply your cooling/heating or humidifying/dehumidifying capacity by plugging the sense cord from a load switcher box like PLUG'n'GROW iLS4-240 in the iGS-25's outlet 2: an iLS4-240 with a 40 A circuit breaker will control up to 8,000 W of 240 V
